STD155N3LH6

Enlarger

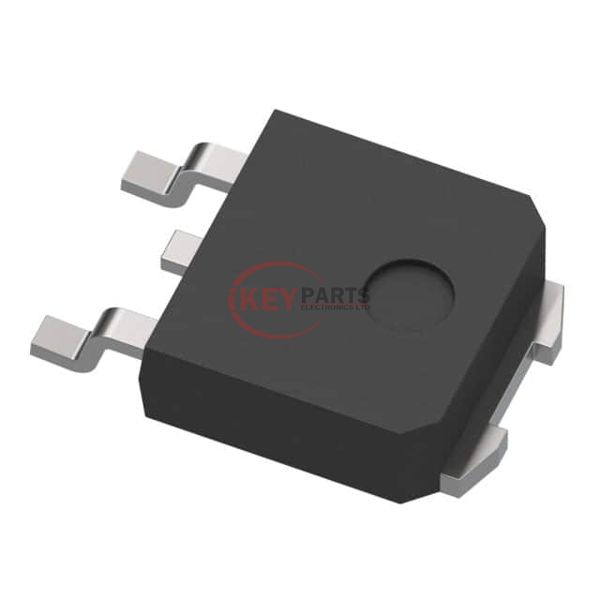

Lmages are for reference only See Product Specitications

STMicroelectronics STD155N3LH6

Manufacturer :
STMicroelectronics
Mfr. Part # :
STD155N3LH6
Description
MOSFET N-CH 30V 80A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STD155N3LH6 PDF
STD155N3LH6 Tech Specifications
SeriesDeepGATE™, STripFET™ VI
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs3mOhm @ 40A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs80 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3800 pF @ 25 V
FET Feature-
Power Dissipation (Max)110W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDPAK
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply STD155N3LH6, use the request quote form to request STD155N3LH6 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STD155N3LH6. The price and lead time for STD155N3LH6 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STD155N3LH6. We look forward to working with you to establish long-term relations of cooperation.
