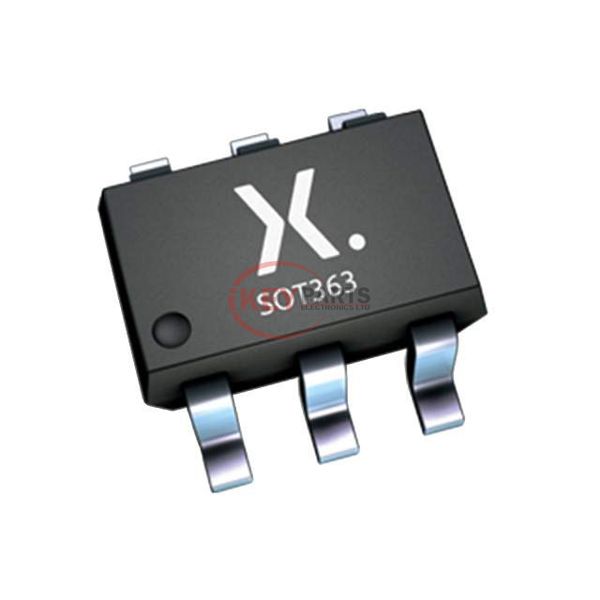

PMG85XPH

Enlarger

Lmages are for reference only See Product Specitications

Nexperia PMG85XPH

Manufacturer :
Nexperia
Mfr. Part # :
PMG85XPH
Description
MOSFET P-CH 20V 2A 6TSSOP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMG85XPH PDF
PMG85XPH Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2A (Tj)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs115mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1.15V @ 250µA
Gate Charge (Qg) (Max) @ Vgs7.2 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds560 pF @ 10 V
FET Feature-
Power Dissipation (Max)375mW (Ta), 2.4W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-TSSOP
Package / Case6-TSSOP, SC-88, SOT-363
Request Quote Now
Request Quote Now

We can supply PMG85XPH, use the request quote form to request PMG85XPH pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMG85XPH. The price and lead time for PMG85XPH depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMG85XPH. We look forward to working with you to establish long-term relations of cooperation.
