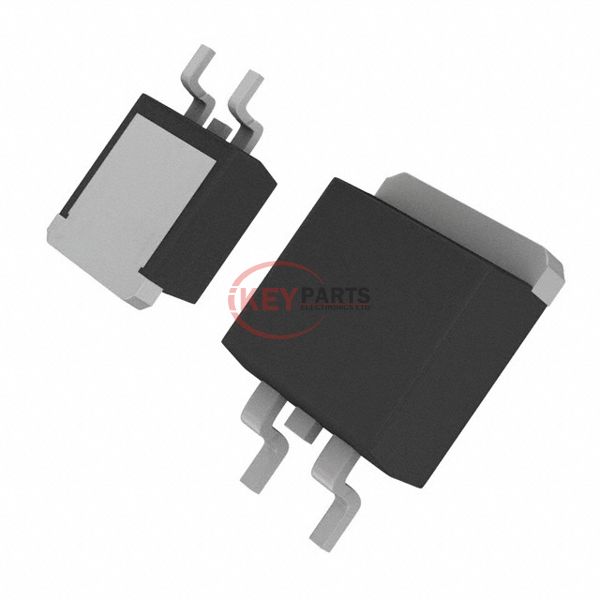

APT7M120S

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT7M120S

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT7M120S
Description
MOSFET N-CH 1200V 8A D3PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT7M120S PDF
In Stock
585
APT7M120S Tech Specifications
SeriesPOWER MOS 8™
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs2.1Ohm @ 3A, 10V
Vgs(th) (Max) @ Id5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs80 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds2565 pF @ 25 V
FET Feature-
Power Dissipation (Max)335W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD3Pak
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Request Quote Now
Request Quote Now

We can supply APT7M120S, use the request quote form to request APT7M120S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT7M120S. The price and lead time for APT7M120S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT7M120S. We look forward to working with you to establish long-term relations of cooperation.
