TPN3300ANH,LQ

Enlarger

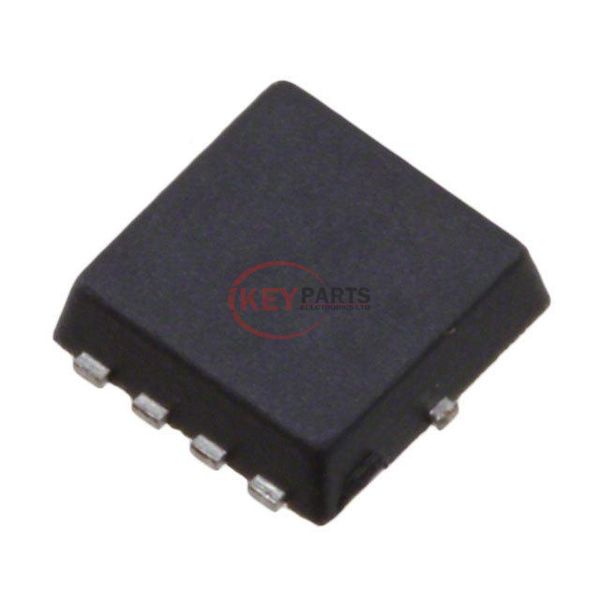

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation TPN3300ANH,LQ

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
TPN3300ANH,LQ
Description
MOSFET N-CH 100V 9.4A 8TSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPN3300ANH,LQ PDF
TPN3300ANH,LQ Tech Specifications
SeriesU-MOSVIII-H
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C9.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs33mOhm @ 4.7A, 10V
Vgs(th) (Max) @ Id4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs11 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds880 pF @ 50 V
FET Feature-
Power Dissipation (Max)700mW (Ta), 27W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-TSON Advance (3.3x3.3)
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply TPN3300ANH,LQ, use the request quote form to request TPN3300ANH,LQ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPN3300ANH,LQ. The price and lead time for TPN3300ANH,LQ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPN3300ANH,LQ. We look forward to working with you to establish long-term relations of cooperation.
