RZF013P01TL

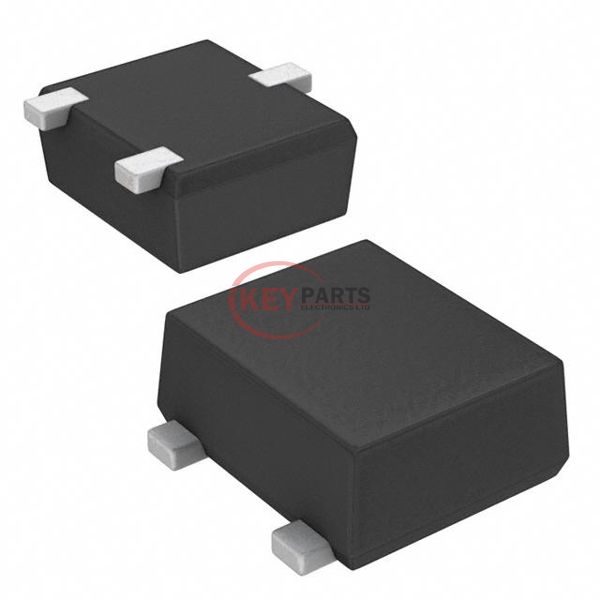

Enlarger

Lmages are for reference only See Product Specitications

ROHM Semiconductor RZF013P01TL

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
RZF013P01TL
Description
MOSFET P-CH 12V 1.3A TUMT3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RZF013P01TL PDF
RZF013P01TL Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C1.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs260mOhm @ 1.3A, 4.5V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs2.4 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds290 pF @ 6 V
FET Feature-
Power Dissipation (Max)800mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTUMT3
Package / Case3-SMD, Flat Lead
Request Quote Now
Request Quote Now

We can supply RZF013P01TL, use the request quote form to request RZF013P01TL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RZF013P01TL. The price and lead time for RZF013P01TL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RZF013P01TL. We look forward to working with you to establish long-term relations of cooperation.
