SSM6K514NU,LF

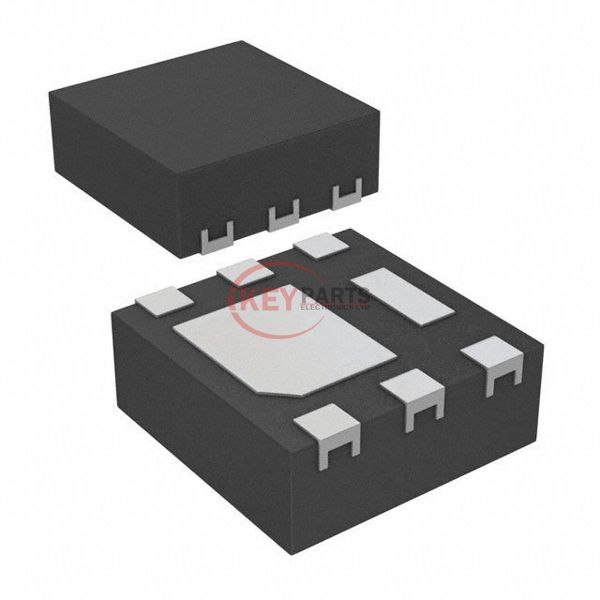

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation SSM6K514NU,LF

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
SSM6K514NU,LF
Description
MOSFET N-CH 40V 12A 6UDFNB
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SSM6K514NU,LF PDF
SSM6K514NU,LF Tech Specifications
SeriesU-MOSIX-H
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C12A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs11.6mOhm @ 4A, 10V
Vgs(th) (Max) @ Id2.4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs7.5 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1110 pF @ 20 V
FET Feature-
Power Dissipation (Max)2.5W (Ta)
Operating Temperature150°C
Mounting TypeSurface Mount
Supplier Device Package6-UDFNB (2x2)
Package / Case6-WDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply SSM6K514NU,LF, use the request quote form to request SSM6K514NU,LF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SSM6K514NU,LF. The price and lead time for SSM6K514NU,LF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SSM6K514NU,LF. We look forward to working with you to establish long-term relations of cooperation.
