IRF3709PBF

Enlarger

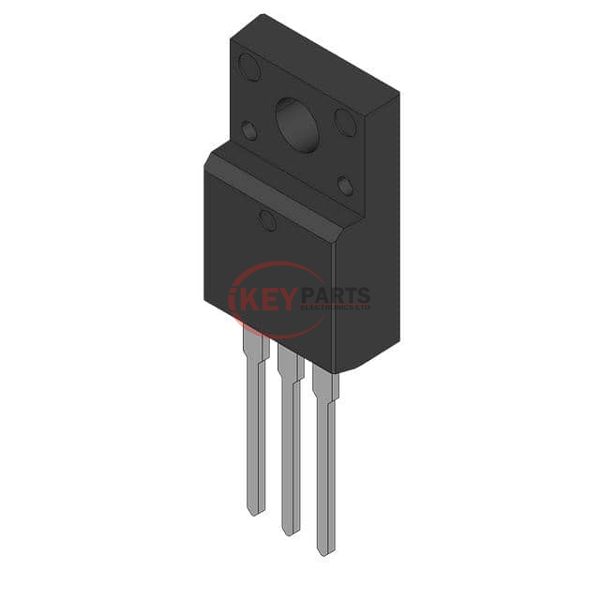

Lmages are for reference only See Product Specitications

Rochester Electronics IRF3709PBF

Manufacturer :
Rochester Electronics
Mfr. Part # :
IRF3709PBF
Description
IRF3709 - 12V-300V N-CHANNEL POW
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRF3709PBF PDF
In Stock
913
IRF3709PBF Tech Specifications
SeriesHEXFET®
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs9mOhm @ 15A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs41 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2.672 pF @ 16 V
FET Feature-
Power Dissipation (Max)3.1W (Ta), 120W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply IRF3709PBF, use the request quote form to request IRF3709PBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRF3709PBF. The price and lead time for IRF3709PBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRF3709PBF. We look forward to working with you to establish long-term relations of cooperation.
