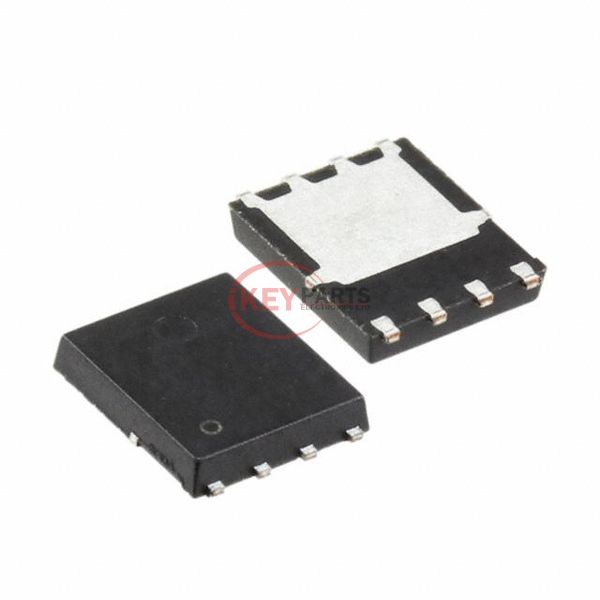

FDWS9510L-F085

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDWS9510L-F085

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDWS9510L-F085
Description
MOSFET P-CH 40V 50A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDWS9510L-F085 PDF
FDWS9510L-F085 Tech Specifications
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs13.5mOhm @ 50A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs37 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds2320 pF @ 20 V
FET Feature-
Power Dissipation (Max)75W (Tj)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (5.1x6.3)
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply FDWS9510L-F085, use the request quote form to request FDWS9510L-F085 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDWS9510L-F085. The price and lead time for FDWS9510L-F085 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDWS9510L-F085. We look forward to working with you to establish long-term relations of cooperation.
