STL18N60M2

Enlarger

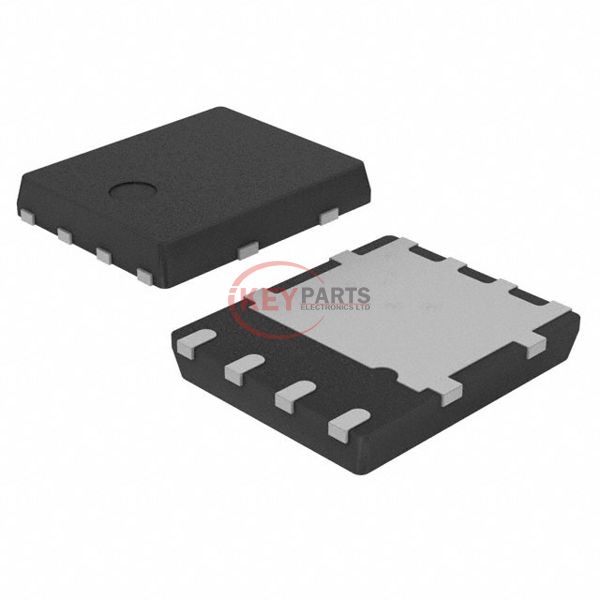

Lmages are for reference only See Product Specitications

STMicroelectronics STL18N60M2

Manufacturer :
STMicroelectronics
Mfr. Part # :
STL18N60M2
Description
MOSFET N-CH 600V 9A POWERFLAT HV
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STL18N60M2 PDF
STL18N60M2 Tech Specifications
SeriesMDmesh™ II Plus
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs308mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs21.5 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds791 pF @ 100 V
FET Feature-
Power Dissipation (Max)57W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (5x6) HV
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply STL18N60M2, use the request quote form to request STL18N60M2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STL18N60M2. The price and lead time for STL18N60M2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STL18N60M2. We look forward to working with you to establish long-term relations of cooperation.
