G30N04D3

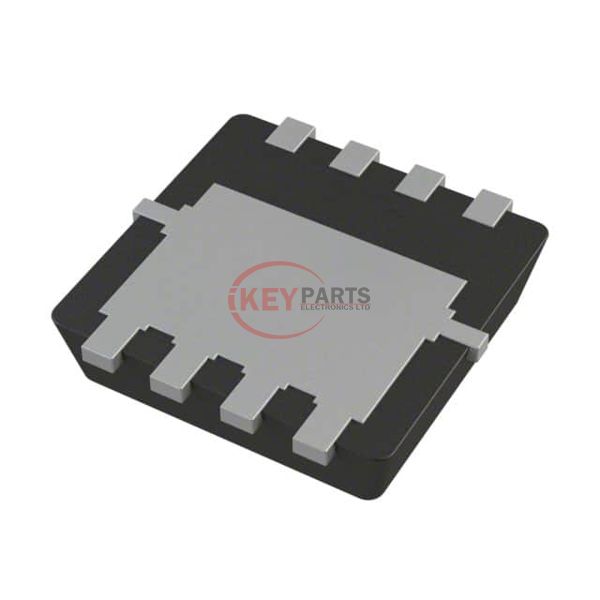

Enlarger

Lmages are for reference only See Product Specitications

G30N04D3

Manufacturer :
Mfr. Part # :
G30N04D3
Description
MOSFET N-CH 40V 30A DFN33-8L
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
G30N04D3 PDF
G30N04D3 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs9.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs30 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1780 pF @ 20 V
FET FeatureStandard
Power Dissipation (Max)19.8W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (3x3)
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply G30N04D3, use the request quote form to request G30N04D3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number G30N04D3. The price and lead time for G30N04D3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# G30N04D3. We look forward to working with you to establish long-term relations of cooperation.
