STK22N6F3

Enlarger

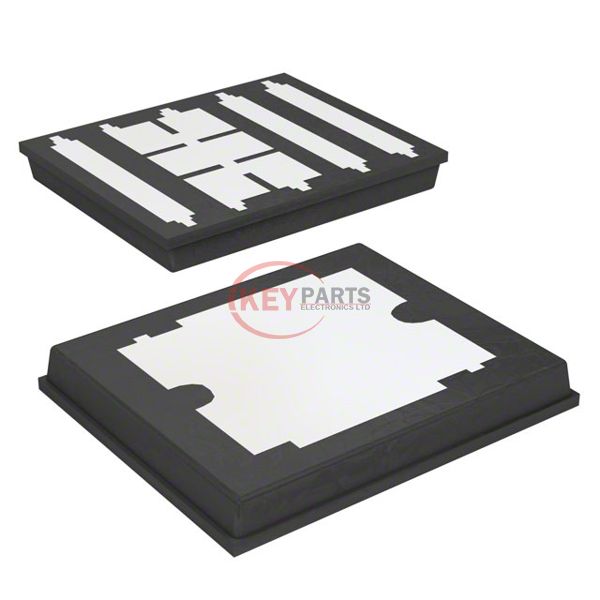

Lmages are for reference only See Product Specitications

STMicroelectronics STK22N6F3

Manufacturer :
STMicroelectronics
Mfr. Part # :
STK22N6F3
Description
MOSFET N-CH 60V 22A POLARPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STK22N6F3 PDF
STK22N6F3 Tech Specifications
SeriesSTripFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C22A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs6mOhm @ 11A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs41 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2500 pF @ 25 V
FET Feature-
Power Dissipation (Max)5.2W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePolarPak®
Package / CasePolarPak®
Request Quote Now
Request Quote Now

We can supply STK22N6F3, use the request quote form to request STK22N6F3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STK22N6F3. The price and lead time for STK22N6F3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STK22N6F3. We look forward to working with you to establish long-term relations of cooperation.
