Series | OptiMOS™ | |
Package | Tube | |
Part Status | Obsolete | |
FET Type | N-Channel | |
Technology | MOSFET (Metal Oxide) | |
Drain to Source Voltage (Vdss) | 55 V | |
Current - Continuous Drain (Id) @ 25°C | 77A (Tc) | |
Drive Voltage (Max Rds On, Min Rds On) | 10V | |
Rds On (Max) @ Id, Vgs | 9.1mOhm @ 39A, 10V | |
Vgs(th) (Max) @ Id | 4V @ 55µA | |
Gate Charge (Qg) (Max) @ Vgs | 103 nC @ 10 V | |
Vgs (Max) | ±20V | |
Input Capacitance (Ciss) (Max) @ Vds | 5.335 pF @ 25 V | |
FET Feature | - | |
Power Dissipation (Max) | 107W (Tc) | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Through Hole | |

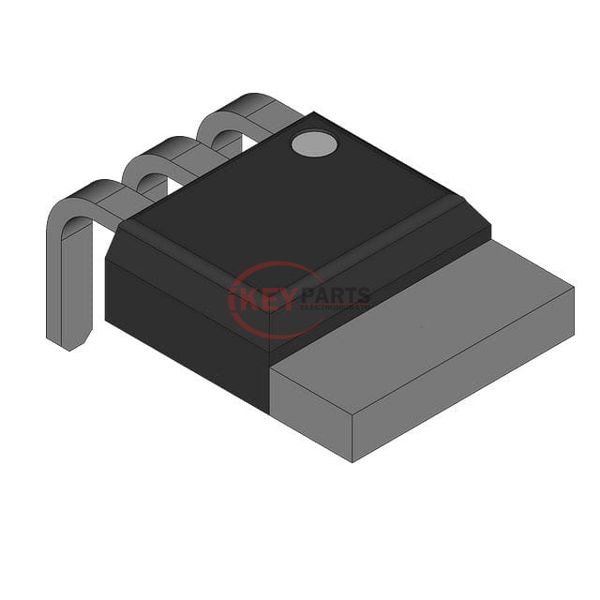

Supplier Device Package | PG-TO262-3 | |
Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
We can supply IPI77N06S3-09, use the request quote form to request IPI77N06S3-09 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPI77N06S3-09. The price and lead time for IPI77N06S3-09 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPI77N06S3-09. We look forward to working with you to establish long-term relations of cooperation.
![]() |
