TPW1R306PL,L1Q

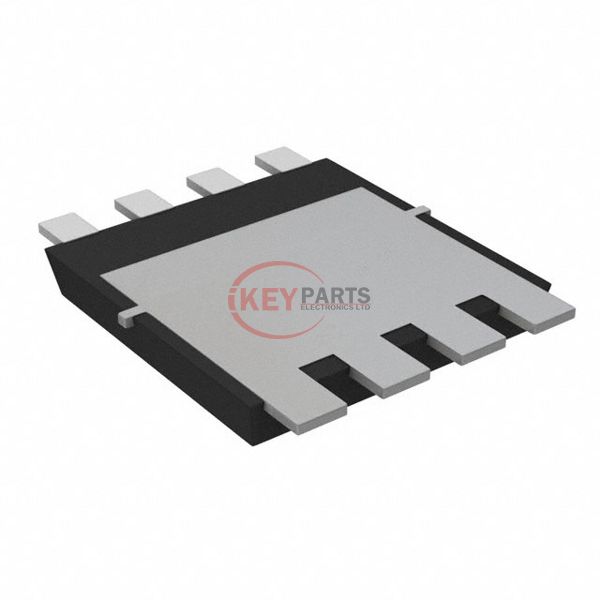

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation TPW1R306PL,L1Q

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
TPW1R306PL,L1Q
Description
MOSFET N-CH 60V 260A 8DSOP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPW1R306PL,L1Q PDF
TPW1R306PL,L1Q Tech Specifications
SeriesU-MOSIX-H
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C260A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.29mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs91 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds8100 pF @ 30 V
FET Feature-
Power Dissipation (Max)960mW (Ta), 170W (Tc)
Operating Temperature175°C
Mounting TypeSurface Mount
Supplier Device Package8-DSOP Advance
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply TPW1R306PL,L1Q, use the request quote form to request TPW1R306PL,L1Q pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPW1R306PL,L1Q. The price and lead time for TPW1R306PL,L1Q depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPW1R306PL,L1Q. We look forward to working with you to establish long-term relations of cooperation.
