FDMC7570S

Enlarger

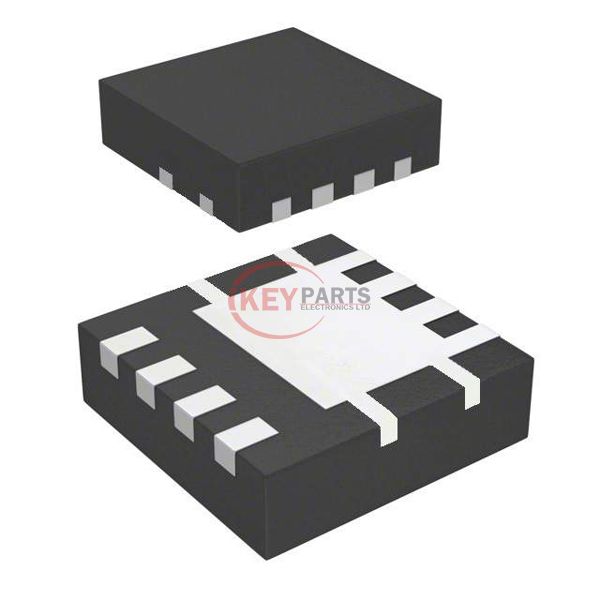

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDMC7570S

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDMC7570S
Description
MOSFET N-CH 25V 27A/40A POWER33
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDMC7570S PDF
In Stock
2052
FDMC7570S Tech Specifications
SeriesPowerTrench®, SyncFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C27A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2mOhm @ 27A, 10V
Vgs(th) (Max) @ Id3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs68 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4410 pF @ 13 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 59W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePower33
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply FDMC7570S, use the request quote form to request FDMC7570S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDMC7570S. The price and lead time for FDMC7570S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDMC7570S. We look forward to working with you to establish long-term relations of cooperation.
