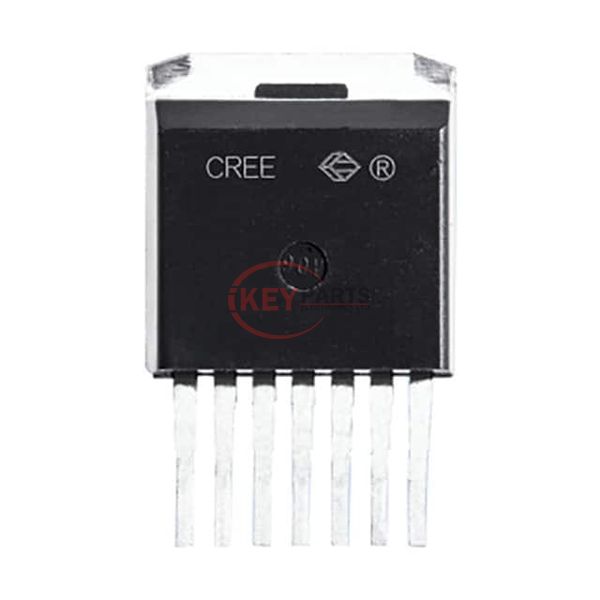

E3M0120090J

Enlarger

Lmages are for reference only See Product Specitications

Wolfspeed - a Cree company E3M0120090J

Manufacturer :
Wolfspeed - a Cree company
Mfr. Part # :
E3M0120090J
Description
900V 120M AUTOMOTIVE SIC MOSFET
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
E3M0120090J PDF
E3M0120090J Tech Specifications
SeriesE-Series, Automotive
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)900 V
Current - Continuous Drain (Id) @ 25°C22A (Tc)
Drive Voltage (Max Rds On, Min Rds On)15V
Rds On (Max) @ Id, Vgs155mOhm @ 15A, 15V
Vgs(th) (Max) @ Id3.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs18 nC @ 15 V
Vgs (Max)+15V, -4V
Input Capacitance (Ciss) (Max) @ Vds414 pF @ 600 V
FET Feature-
Power Dissipation (Max)83W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-263-7
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Request Quote Now
Request Quote Now

We can supply E3M0120090J, use the request quote form to request E3M0120090J pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number E3M0120090J. The price and lead time for E3M0120090J depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# E3M0120090J. We look forward to working with you to establish long-term relations of cooperation.
