NP80N04NDG-S18-AY

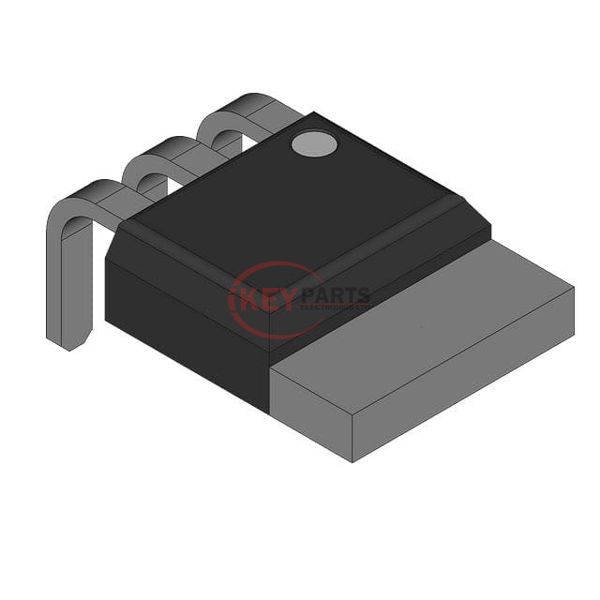

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics NP80N04NDG-S18-AY

Manufacturer :
Rochester Electronics
Mfr. Part # :
NP80N04NDG-S18-AY
Description
MOSFET N-CH 40V 80A TO262
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NP80N04NDG-S18-AY PDF
In Stock
1900
NP80N04NDG-S18-AY Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs4.8mOhm @ 40A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs135 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6900 pF @ 25 V
FET Feature-
Power Dissipation (Max)1.8W (Ta), 115W (Tc)
Operating Temperature175°C
Mounting TypeThrough Hole
Supplier Device PackageTO-262
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Request Quote Now
Request Quote Now

We can supply NP80N04NDG-S18-AY, use the request quote form to request NP80N04NDG-S18-AY pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NP80N04NDG-S18-AY. The price and lead time for NP80N04NDG-S18-AY depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NP80N04NDG-S18-AY. We look forward to working with you to establish long-term relations of cooperation.
