IRFU9120PBF

Enlarger

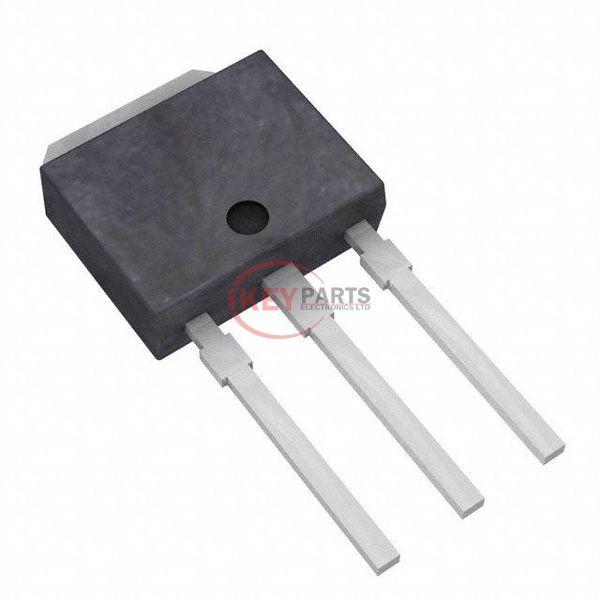

Lmages are for reference only See Product Specitications

Vishay / Siliconix IRFU9120PBF

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
IRFU9120PBF
Description
MOSFET P-CH 100V 5.6A TO251AA
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRFU9120PBF PDF
IRFU9120PBF Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C5.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs600mOhm @ 3.4A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs18 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds390 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 42W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-251AA
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
Request Quote Now
Request Quote Now

We can supply IRFU9120PBF, use the request quote form to request IRFU9120PBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRFU9120PBF. The price and lead time for IRFU9120PBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRFU9120PBF. We look forward to working with you to establish long-term relations of cooperation.
