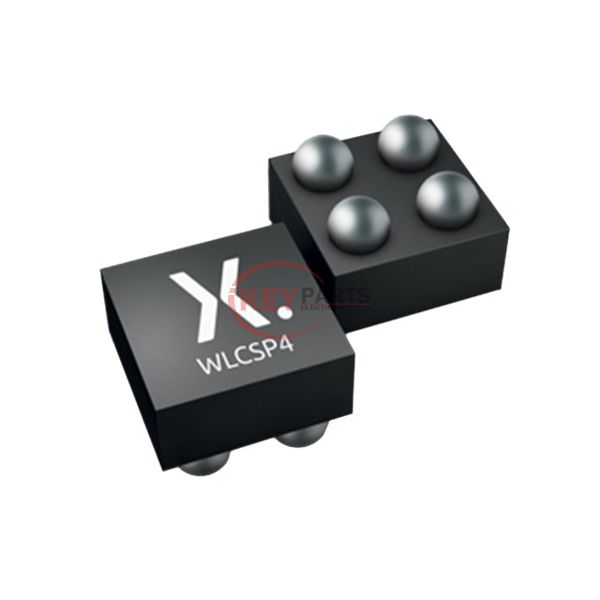

PMCM4401VNEAZ

Enlarger

Lmages are for reference only See Product Specitications

Nexperia PMCM4401VNEAZ

Manufacturer :
Nexperia
Mfr. Part # :
PMCM4401VNEAZ
Description
MOSFET N-CH 12V 4.7A 4WLCSP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMCM4401VNEAZ PDF
In Stock
17965
PMCM4401VNEAZ Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C4.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs42mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs9 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds335 pF @ 6 V
FET Feature-
Power Dissipation (Max)400mW (Ta), 12.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package4-WLCSP (0.78x0.78)
Package / Case4-XFBGA, WLCSP
Request Quote Now
Request Quote Now

We can supply PMCM4401VNEAZ, use the request quote form to request PMCM4401VNEAZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMCM4401VNEAZ. The price and lead time for PMCM4401VNEAZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMCM4401VNEAZ. We look forward to working with you to establish long-term relations of cooperation.
