QS5U36TR

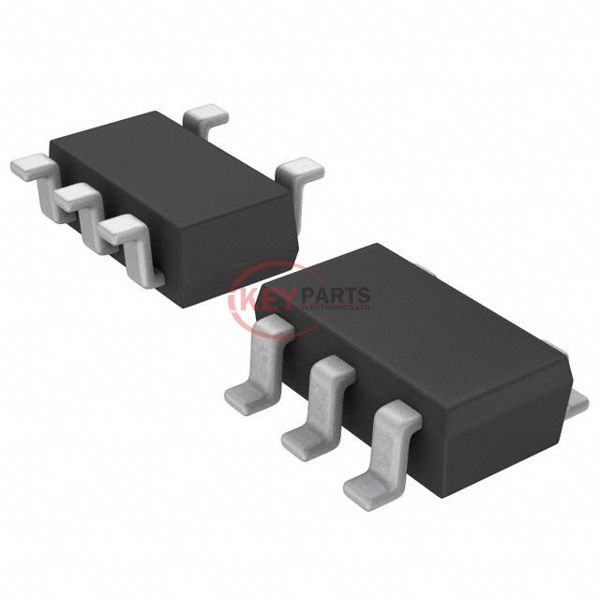

Enlarger

Lmages are for reference only See Product Specitications

ROHM Semiconductor QS5U36TR

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
QS5U36TR
Description
MOSFET N-CH 20V 2.5A TSMT5
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
QS5U36TR PDF
QS5U36TR Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs81mOhm @ 2.5A, 4.5V
Vgs(th) (Max) @ Id1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs3.5 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds280 pF @ 10 V
FET FeatureSchottky Diode (Isolated)
Power Dissipation (Max)1.25W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTSMT5
Package / CaseSOT-23-5 Thin, TSOT-23-5
Request Quote Now
Request Quote Now

We can supply QS5U36TR, use the request quote form to request QS5U36TR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number QS5U36TR. The price and lead time for QS5U36TR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# QS5U36TR. We look forward to working with you to establish long-term relations of cooperation.
