TSM3N80CZ C0G

Enlarger

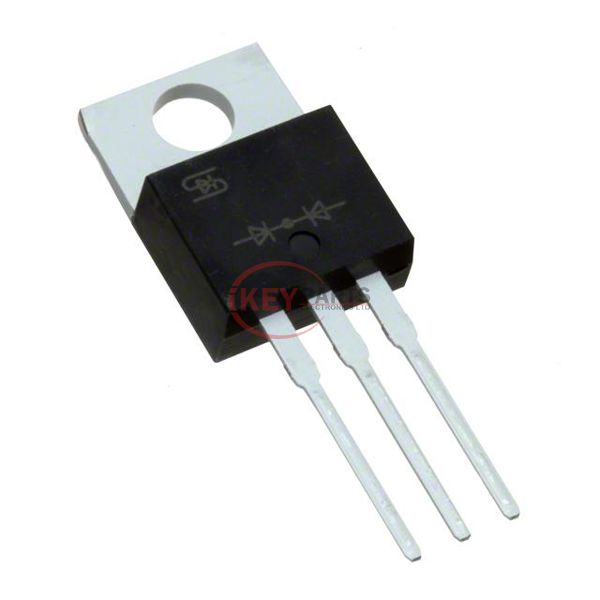

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TSM3N80CZ C0G

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TSM3N80CZ C0G
Description
MOSFET N-CHANNEL 800V 3A TO220
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TSM3N80CZ C0G PDF
TSM3N80CZ C0G Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs4.2Ohm @ 1.5A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs19 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds696 pF @ 25 V
FET Feature-
Power Dissipation (Max)94W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply TSM3N80CZ C0G, use the request quote form to request TSM3N80CZ C0G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM3N80CZ C0G. The price and lead time for TSM3N80CZ C0G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM3N80CZ C0G. We look forward to working with you to establish long-term relations of cooperation.
