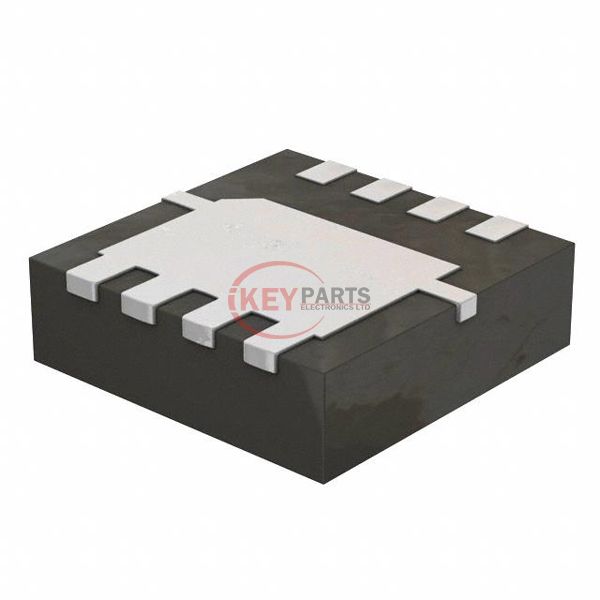

CSD18543Q3AT

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments CSD18543Q3AT

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD18543Q3AT
Description
MOSFET N-CH 60V 12A/60A 8VSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD18543Q3AT PDF
CSD18543Q3AT Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C12A (Ta), 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs15.6mOhm @ 12A, 4.5V
Vgs(th) (Max) @ Id2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs14.5 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1150 pF @ 30 V
FET FeatureStandard
Power Dissipation (Max)66W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-VSON (3.3x3.3)
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply CSD18543Q3AT, use the request quote form to request CSD18543Q3AT pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD18543Q3AT. The price and lead time for CSD18543Q3AT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD18543Q3AT. We look forward to working with you to establish long-term relations of cooperation.
