PXP011-20QXJ

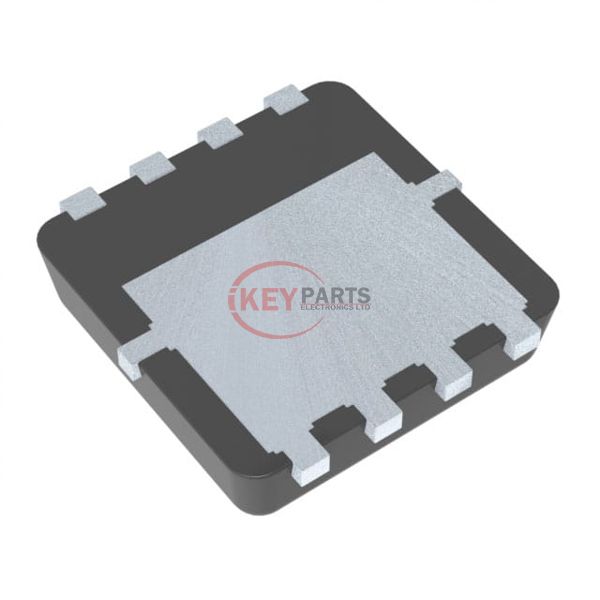

Enlarger

Lmages are for reference only See Product Specitications

Nexperia PXP011-20QXJ

Manufacturer :
Nexperia
Mfr. Part # :
PXP011-20QXJ
Description
PXP011-20QX/SOT8002/MLPAK33
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PXP011-20QXJ PDF
In Stock
702
PXP011-20QXJ Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C10.5A (Ta), 56.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs11.4mOhm @ 10.5A, 4.5V
Vgs(th) (Max) @ Id1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs65.1 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds4200 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.8W (Ta), 50W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageMLPAK33
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply PXP011-20QXJ, use the request quote form to request PXP011-20QXJ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PXP011-20QXJ. The price and lead time for PXP011-20QXJ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PXP011-20QXJ. We look forward to working with you to establish long-term relations of cooperation.
