PMPB23XNEZ

Enlarger

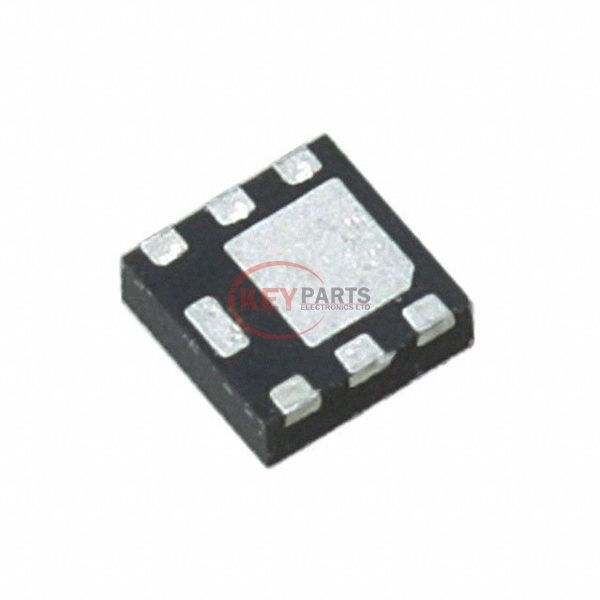

Lmages are for reference only See Product Specitications

Nexperia PMPB23XNEZ

Manufacturer :
Nexperia
Mfr. Part # :
PMPB23XNEZ
Description
MOSFET N-CH 20V 7A 6DFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMPB23XNEZ PDF
PMPB23XNEZ Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs22mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs17 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1136 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.7W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-DFN2020MD (2x2)
Package / Case6-UDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply PMPB23XNEZ, use the request quote form to request PMPB23XNEZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMPB23XNEZ. The price and lead time for PMPB23XNEZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMPB23XNEZ. We look forward to working with you to establish long-term relations of cooperation.
