NTHS5404T1G

Enlarger

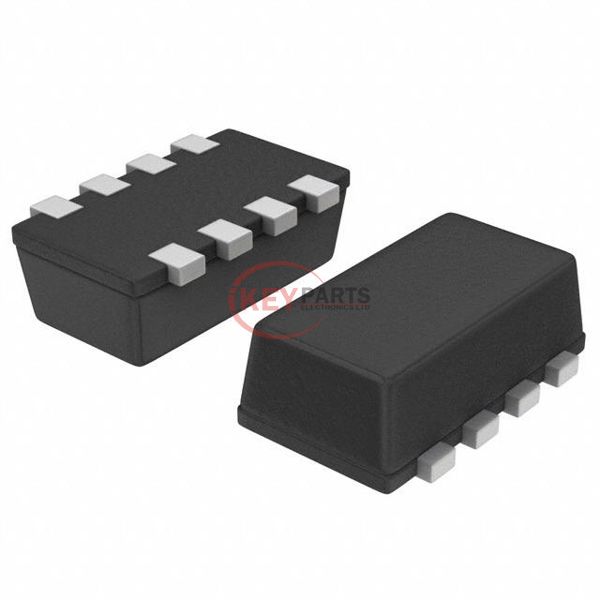

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTHS5404T1G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTHS5404T1G
Description
MOSFET N-CH 20V 5.2A CHIPFET
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTHS5404T1G PDF
NTHS5404T1G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C5.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs30mOhm @ 5.2A, 4.5V
Vgs(th) (Max) @ Id600mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs18 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds-
FET Feature-
Power Dissipation (Max)1.3W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageChipFET™
Package / Case8-SMD, Flat Lead
Request Quote Now
Request Quote Now

We can supply NTHS5404T1G, use the request quote form to request NTHS5404T1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTHS5404T1G. The price and lead time for NTHS5404T1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTHS5404T1G. We look forward to working with you to establish long-term relations of cooperation.
