IPI147N12N3GAKSA1

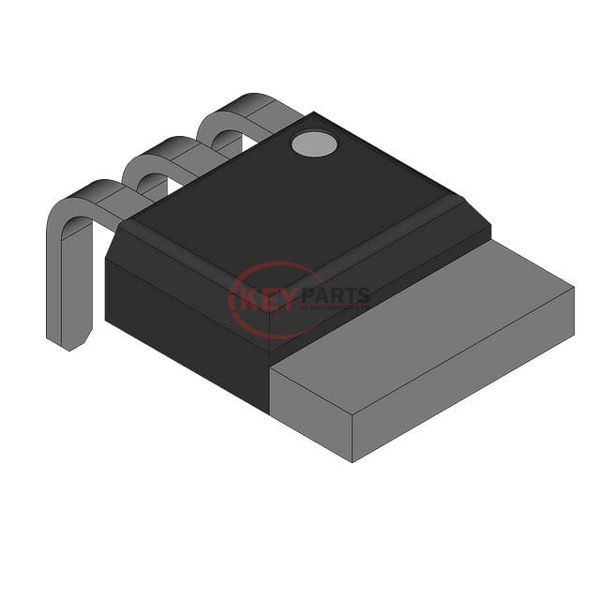

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics IPI147N12N3GAKSA1

Manufacturer :
Rochester Electronics
Mfr. Part # :
IPI147N12N3GAKSA1
Description
MOSFET N-CH 120V 56A TO262-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPI147N12N3GAKSA1 PDF
IPI147N12N3GAKSA1 Tech Specifications
SeriesOptiMOS™
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)120 V
Current - Continuous Drain (Id) @ 25°C56A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs14.7mOhm @ 56A, 10V
Vgs(th) (Max) @ Id4V @ 61µA
Gate Charge (Qg) (Max) @ Vgs49 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3.22 pF @ 60 V
FET Feature-
Power Dissipation (Max)107W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO262-3
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Request Quote Now
Request Quote Now

We can supply IPI147N12N3GAKSA1, use the request quote form to request IPI147N12N3GAKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPI147N12N3GAKSA1. The price and lead time for IPI147N12N3GAKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPI147N12N3GAKSA1. We look forward to working with you to establish long-term relations of cooperation.
