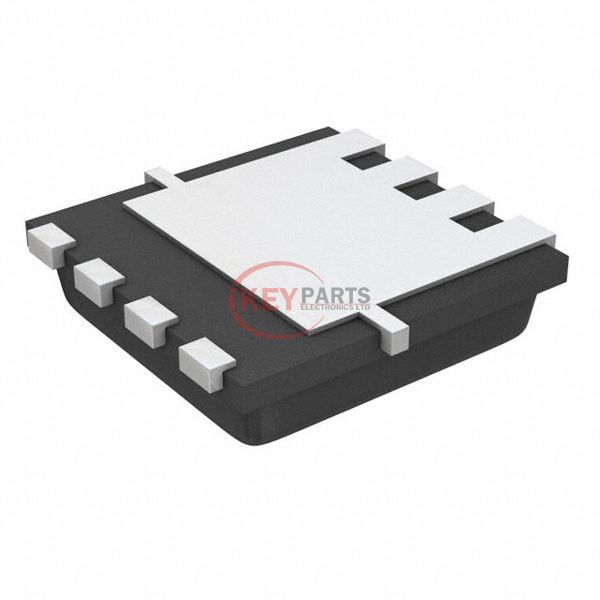

DMT6015LFV-13

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMT6015LFV-13

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMT6015LFV-13
Description
MOSFET N-CH 60V PWRDI3333
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMT6015LFV-13 PDF
DMT6015LFV-13 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C9.5A (Ta), 35A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs16mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs18.9 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds1103 pF @ 30 V
FET Feature-
Power Dissipation (Max)2.2W (Ta), 30W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI3333-8 (Type UX)
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply DMT6015LFV-13, use the request quote form to request DMT6015LFV-13 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMT6015LFV-13. The price and lead time for DMT6015LFV-13 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMT6015LFV-13. We look forward to working with you to establish long-term relations of cooperation.
