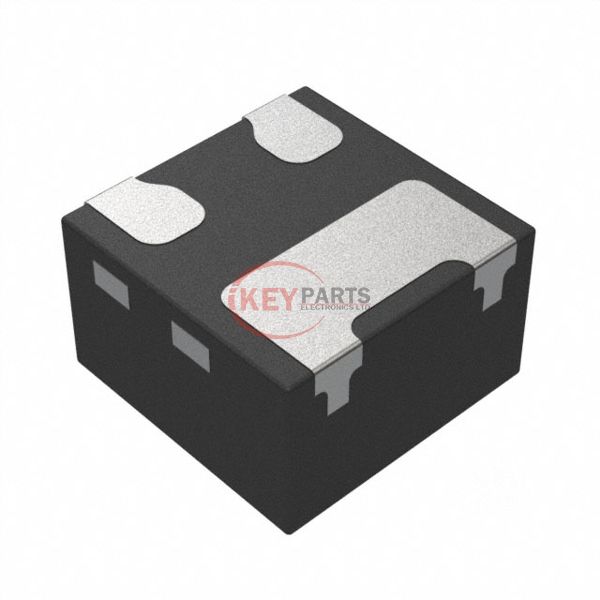

NX7002BKHH

Enlarger

Lmages are for reference only See Product Specitications

Nexperia NX7002BKHH

Manufacturer :
Nexperia
Mfr. Part # :
NX7002BKHH
Description
MOSFET N-CH 60V 350MA DFN0606-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NX7002BKHH PDF
NX7002BKHH Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C350mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.8Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds22.2 pF @ 30 V
FET Feature-
Power Dissipation (Max)380mW (Ta), 2.8W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN0606-3 (SOT8001)
Package / Case3-XFDFN
Request Quote Now
Request Quote Now

We can supply NX7002BKHH, use the request quote form to request NX7002BKHH pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NX7002BKHH. The price and lead time for NX7002BKHH depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NX7002BKHH. We look forward to working with you to establish long-term relations of cooperation.
