APT22F120L

Enlarger

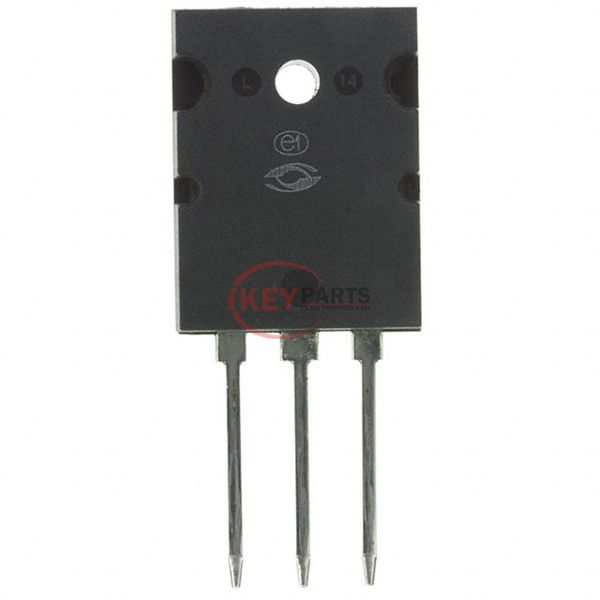

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT22F120L

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT22F120L
Description
MOSFET N-CH 1200V 23A TO264
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT22F120L PDF
APT22F120L Tech Specifications
SeriesPOWER MOS 8™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs700mOhm @ 12A, 10V
Vgs(th) (Max) @ Id5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs260 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds8370 pF @ 25 V
FET Feature-
Power Dissipation (Max)1040W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-264 [L]
Package / CaseTO-264-3, TO-264AA
Request Quote Now
Request Quote Now

We can supply APT22F120L, use the request quote form to request APT22F120L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT22F120L. The price and lead time for APT22F120L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT22F120L. We look forward to working with you to establish long-term relations of cooperation.
