IRLR014TRL

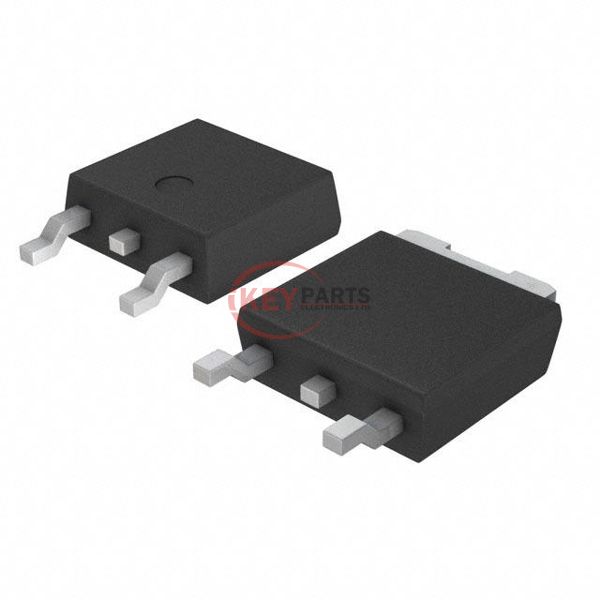

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix IRLR014TRL

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
IRLR014TRL
Description
MOSFET N-CH 60V 7.7A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRLR014TRL PDF
In Stock
958
IRLR014TRL Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C7.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4V, 5V
Rds On (Max) @ Id, Vgs200mOhm @ 4.6A, 5V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8.4 nC @ 5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds400 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 25W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD-Pak
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply IRLR014TRL, use the request quote form to request IRLR014TRL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRLR014TRL. The price and lead time for IRLR014TRL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRLR014TRL. We look forward to working with you to establish long-term relations of cooperation.
