RMA7N20ED1

Enlarger

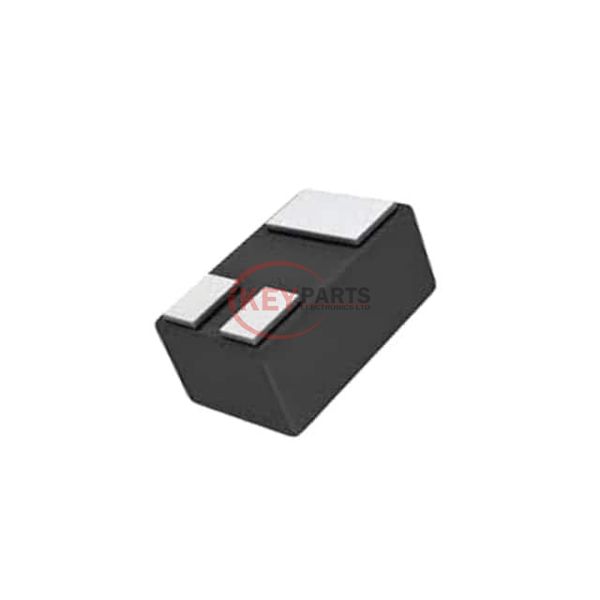

Lmages are for reference only See Product Specitications

Rectron USA RMA7N20ED1

Manufacturer :
Rectron USA
Mfr. Part # :
RMA7N20ED1
Description
MOSFET N-CH 20V 700MA DFN1006-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RMA7N20ED1 PDF
In Stock
753
RMA7N20ED1 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C700mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs260mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds40 pF @ 10 V
FET Feature-
Power Dissipation (Max)550mW (Ta)
Operating Temperature-50°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN1006-3
Package / CaseSC-101, SOT-883
Request Quote Now
Request Quote Now

We can supply RMA7N20ED1, use the request quote form to request RMA7N20ED1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RMA7N20ED1. The price and lead time for RMA7N20ED1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RMA7N20ED1. We look forward to working with you to establish long-term relations of cooperation.
