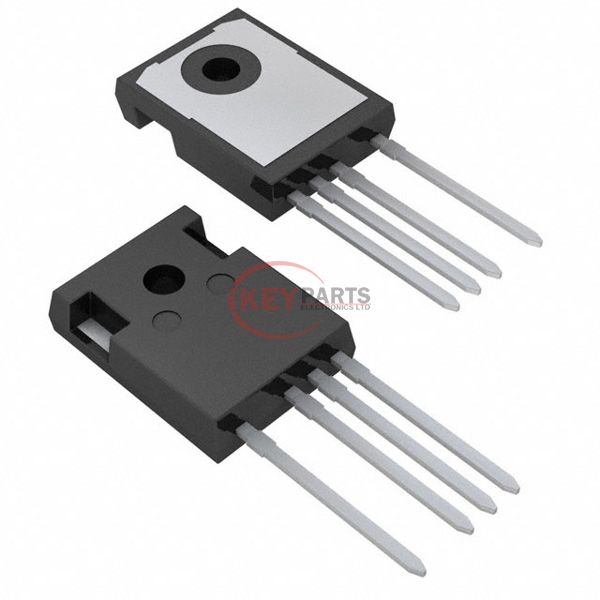

STW48N60M6-4

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STW48N60M6-4

Manufacturer :
STMicroelectronics
Mfr. Part # :
STW48N60M6-4
Description
MOSFET N-CH 600V 39A TO247-4
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STW48N60M6-4 PDF
STW48N60M6-4 Tech Specifications
SeriesMDmesh™ M6
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C39A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs69mOhm @ 19.5A, 10V
Vgs(th) (Max) @ Id4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs57 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds2578 pF @ 100 V
FET Feature-
Power Dissipation (Max)250W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-4
Package / CaseTO-247-4
Request Quote Now
Request Quote Now

We can supply STW48N60M6-4, use the request quote form to request STW48N60M6-4 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STW48N60M6-4. The price and lead time for STW48N60M6-4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STW48N60M6-4. We look forward to working with you to establish long-term relations of cooperation.
