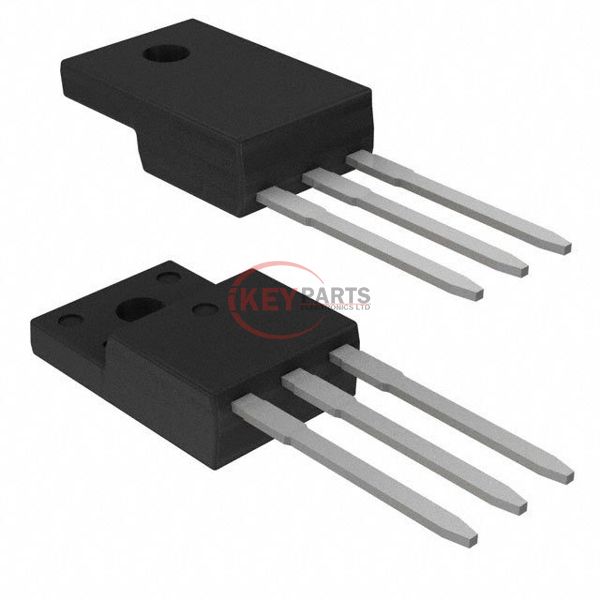

2SJ652-1E

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor 2SJ652-1E

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
2SJ652-1E
Description
MOSFET P-CH 60V 28A TO220F-3SG
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SJ652-1E PDF
In Stock
805
2SJ652-1E Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C28A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs38mOhm @ 14A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs80 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4360 pF @ 20 V
FET Feature-
Power Dissipation (Max)2W (Ta), 30W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220F-3SG
Package / CaseTO-220-3 Full Pack
Request Quote Now
Request Quote Now

We can supply 2SJ652-1E, use the request quote form to request 2SJ652-1E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SJ652-1E. The price and lead time for 2SJ652-1E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SJ652-1E. We look forward to working with you to establish long-term relations of cooperation.
