AOL1240

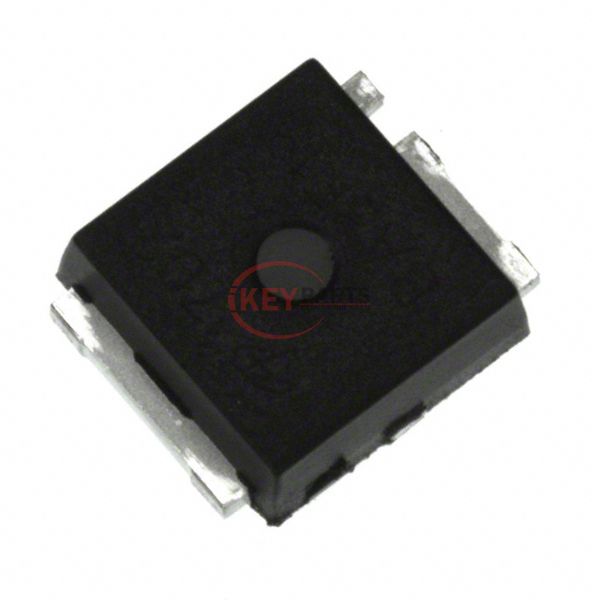

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AOL1240

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AOL1240
Description
MOSFET N-CH 40V 19A/69A ULTRASO8
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AOL1240 PDF
In Stock
611
AOL1240 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C19A (Ta), 69A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs50.5 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3800 pF @ 20 V
FET Feature-
Power Dissipation (Max)2.1W (Ta), 125W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageUltraSO-8™
Package / Case3-PowerSMD, Flat Leads
Request Quote Now
Request Quote Now

We can supply AOL1240, use the request quote form to request AOL1240 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AOL1240. The price and lead time for AOL1240 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AOL1240. We look forward to working with you to establish long-term relations of cooperation.
