ISC037N03L5ISATMA1

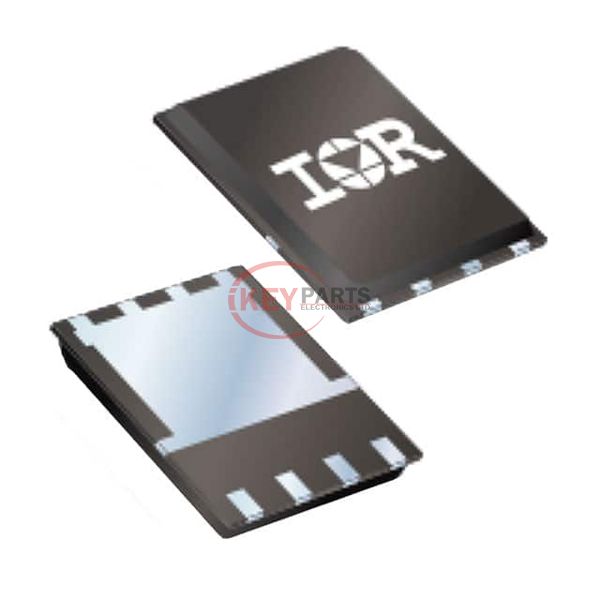

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) ISC037N03L5ISATMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
ISC037N03L5ISATMA1
Description
MOSFET N-CH 30V 20A/78A TDSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ISC037N03L5ISATMA1 PDF
In Stock
10150
ISC037N03L5ISATMA1 Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C20A (Ta), 78A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.7mOhm @ 30A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1100 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 37W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8-6
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply ISC037N03L5ISATMA1, use the request quote form to request ISC037N03L5ISATMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ISC037N03L5ISATMA1. The price and lead time for ISC037N03L5ISATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ISC037N03L5ISATMA1. We look forward to working with you to establish long-term relations of cooperation.
