IPB80N04S3-04

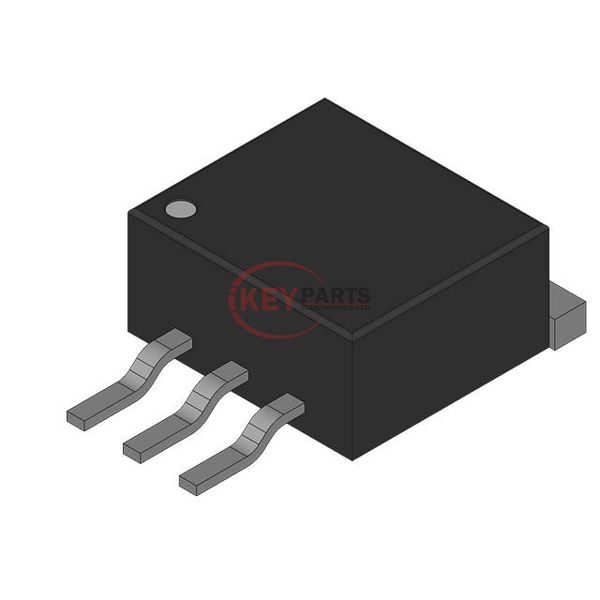

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics IPB80N04S3-04

Manufacturer :
Rochester Electronics
Mfr. Part # :
IPB80N04S3-04
Description
MOSFET N-CH 40V 80A TO263-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPB80N04S3-04 PDF
In Stock
524
IPB80N04S3-04 Tech Specifications
SeriesAutomotive, AEC-Q101, OptiMOS™
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs4.1mOhm @ 80A, 10V
Vgs(th) (Max) @ Id4V @ 90µA
Gate Charge (Qg) (Max) @ Vgs80 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5200 pF @ 25 V
FET Feature-
Power Dissipation (Max)136W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO263-3
Package / CaseTO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Request Quote Now
Request Quote Now

We can supply IPB80N04S3-04, use the request quote form to request IPB80N04S3-04 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPB80N04S3-04. The price and lead time for IPB80N04S3-04 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPB80N04S3-04. We look forward to working with you to establish long-term relations of cooperation.
