DMT3009LFVWQ-7

Enlarger

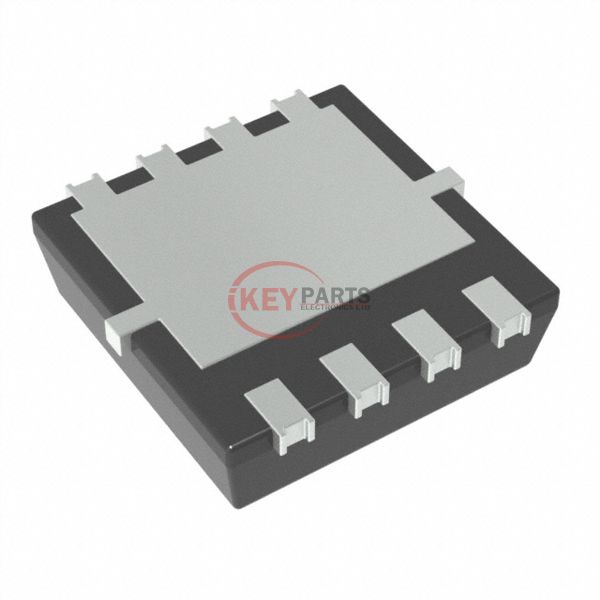

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMT3009LFVWQ-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMT3009LFVWQ-7
Description
MOSFET N-CH 30V 12A PWRDI3333
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMT3009LFVWQ-7 PDF
DMT3009LFVWQ-7 Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C12A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)3.8V, 10V
Rds On (Max) @ Id, Vgs11mOhm @ 14.4A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds823 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 35.7W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Supplier Device PackagePowerDI3333-8 (SWP) Type UX
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply DMT3009LFVWQ-7, use the request quote form to request DMT3009LFVWQ-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMT3009LFVWQ-7. The price and lead time for DMT3009LFVWQ-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMT3009LFVWQ-7. We look forward to working with you to establish long-term relations of cooperation.
