SQR40020ER_GE3

Enlarger

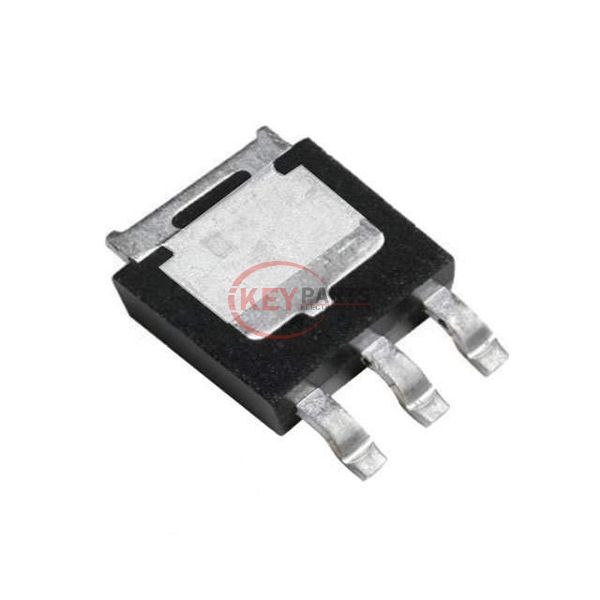

Lmages are for reference only See Product Specitications

Vishay / Siliconix SQR40020ER_GE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SQR40020ER_GE3
Description
MOSFET N-CH 40V 100A TO252 REV
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SQR40020ER_GE3 PDF
SQR40020ER_GE3 Tech Specifications
SeriesAutomotive, AEC-Q101, TrenchFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs2.33mOhm @ 20A, 10V
Vgs(th) (Max) @ Id3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs130 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds8000 pF @ 25 V
FET Feature-
Power Dissipation (Max)107W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252 (DPAK) Reverse Lead
Package / CaseTO-252-4, DPak (3 Leads + Tab)
Request Quote Now
Request Quote Now

We can supply SQR40020ER_GE3, use the request quote form to request SQR40020ER_GE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SQR40020ER_GE3. The price and lead time for SQR40020ER_GE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SQR40020ER_GE3. We look forward to working with you to establish long-term relations of cooperation.
