PMN20EN,115

Enlarger

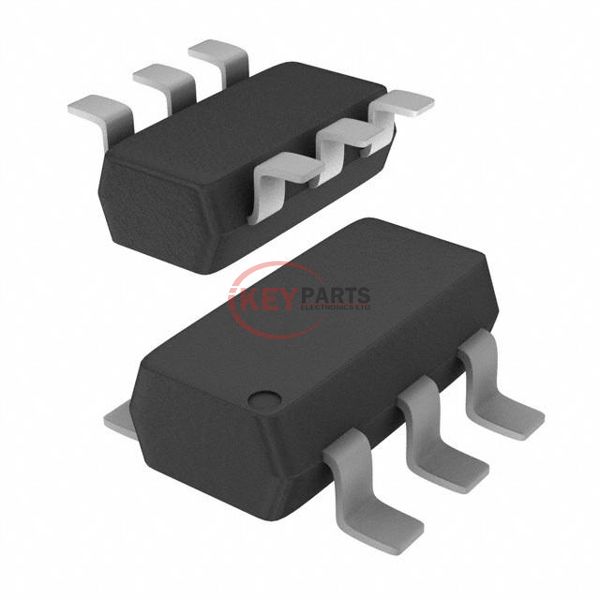

Lmages are for reference only See Product Specitications

Rochester Electronics PMN20EN,115

Manufacturer :
Rochester Electronics
Mfr. Part # :
PMN20EN,115
Description
SMALL SIGNAL FIELD-EFFECT TRANSI
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMN20EN,115 PDF
PMN20EN,115 Tech Specifications
Series-
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C6.7A (Tj)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs20mOhm @ 6.7A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs18.6 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds630 pF @ 15 V
FET Feature-
Power Dissipation (Max)545mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-TSOP
Package / CaseSC-74, SOT-457
Request Quote Now
Request Quote Now

We can supply PMN20EN,115, use the request quote form to request PMN20EN,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMN20EN,115. The price and lead time for PMN20EN,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMN20EN,115. We look forward to working with you to establish long-term relations of cooperation.
