CSD17318Q2T

Enlarger

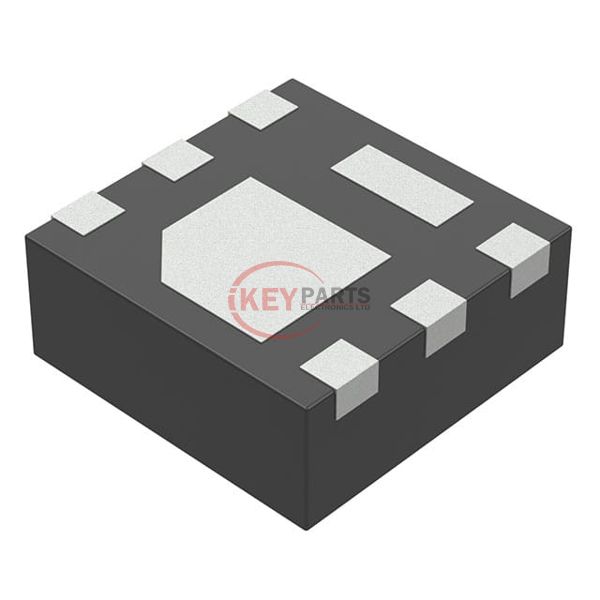

Lmages are for reference only See Product Specitications

Texas Instruments CSD17318Q2T

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD17318Q2T
Description
MOSFET N-CHANNEL 30V 25A 6WSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD17318Q2T PDF
In Stock
324410000
CSD17318Q2T Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C25A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 8V
Rds On (Max) @ Id, Vgs15.1mOhm @ 8A, 8V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds879 pF @ 15 V
FET Feature-
Power Dissipation (Max)16W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-WSON (2x2)
Package / Case6-WDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply CSD17318Q2T, use the request quote form to request CSD17318Q2T pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD17318Q2T. The price and lead time for CSD17318Q2T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD17318Q2T. We look forward to working with you to establish long-term relations of cooperation.
