PMN50EPEX

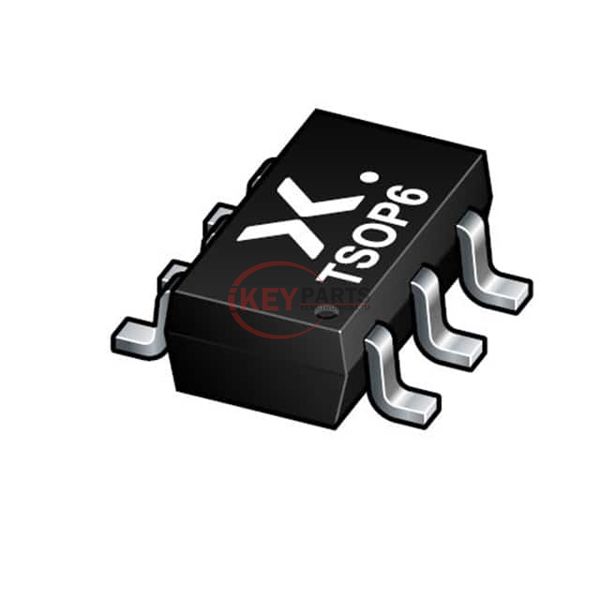

Enlarger

Lmages are for reference only See Product Specitications

Nexperia PMN50EPEX

Manufacturer :
Nexperia
Mfr. Part # :
PMN50EPEX
Description
MOSFET P-CH 30V 4.6A 6TSOP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMN50EPEX PDF
PMN50EPEX Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C4.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs45mOhm @ 4.6A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs20 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds793 pF @ 15 V
FET Feature-
Power Dissipation (Max)560mW (Ta), 6.25mW (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-TSOP
Package / CaseSC-74, SOT-457
Request Quote Now
Request Quote Now

We can supply PMN50EPEX, use the request quote form to request PMN50EPEX pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMN50EPEX. The price and lead time for PMN50EPEX depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMN50EPEX. We look forward to working with you to establish long-term relations of cooperation.
