IRLML2246TRPBF

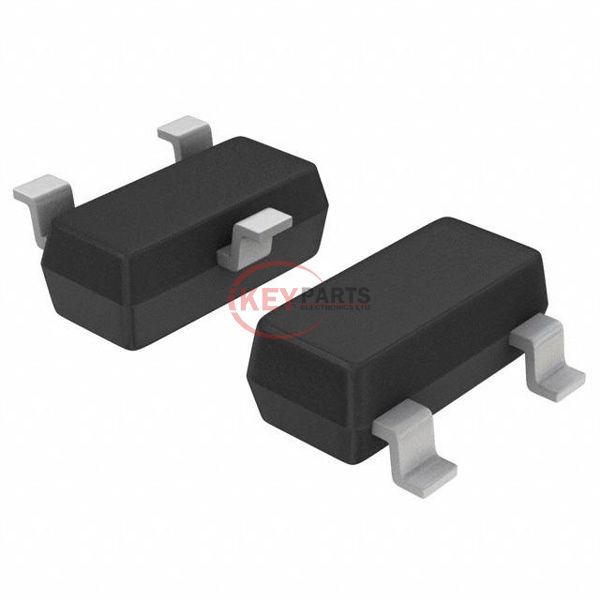

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRLML2246TRPBF

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRLML2246TRPBF
Description
MOSFET P-CH 20V 2.6A SOT23
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRLML2246TRPBF PDF
IRLML2246TRPBF Tech Specifications
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs135mOhm @ 2.6A, 4.5V
Vgs(th) (Max) @ Id1.1V @ 10µA
Gate Charge (Qg) (Max) @ Vgs2.9 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds220 pF @ 16 V
FET Feature-
Power Dissipation (Max)1.3W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageMicro3™/SOT-23
Package / CaseTO-236-3, SC-59, SOT-23-3
Request Quote Now
Request Quote Now

We can supply IRLML2246TRPBF, use the request quote form to request IRLML2246TRPBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRLML2246TRPBF. The price and lead time for IRLML2246TRPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRLML2246TRPBF. We look forward to working with you to establish long-term relations of cooperation.
