IPD90N06S4L03ATMA2

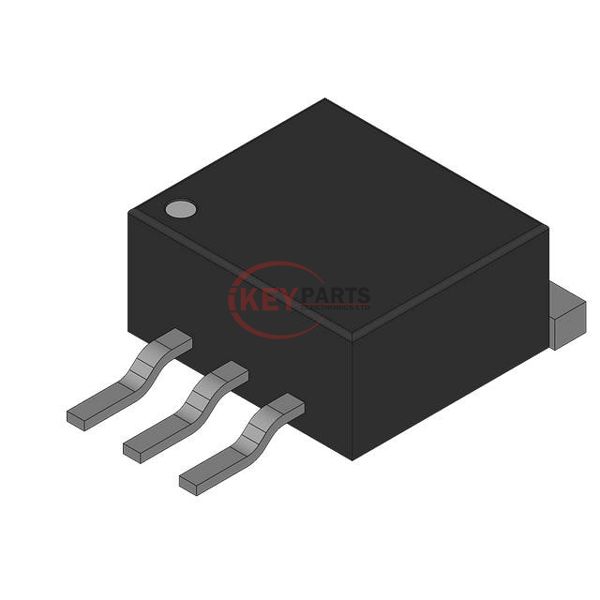

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPD90N06S4L03ATMA2

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPD90N06S4L03ATMA2
Description
MOSFET N-CH 60V 90A TO252-31
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPD90N06S4L03ATMA2 PDF
In Stock
2150
IPD90N06S4L03ATMA2 Tech Specifications
SeriesAutomotive, AEC-Q101, OptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.5mOhm @ 90A, 10V
Vgs(th) (Max) @ Id2.2V @ 90µA
Gate Charge (Qg) (Max) @ Vgs170 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds13000 pF @ 25 V
FET Feature-
Power Dissipation (Max)150W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO252-3-11
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply IPD90N06S4L03ATMA2, use the request quote form to request IPD90N06S4L03ATMA2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPD90N06S4L03ATMA2. The price and lead time for IPD90N06S4L03ATMA2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPD90N06S4L03ATMA2. We look forward to working with you to establish long-term relations of cooperation.
