Series | - | |
Package | Tube | |
Part Status | Active | |
FET Type | N-Channel | |
Technology | SiC (Silicon Carbide Junction Transistor) | |
Drain to Source Voltage (Vdss) | 700 V | |
Current - Continuous Drain (Id) @ 25°C | 124A (Tc) | |
Drive Voltage (Max Rds On, Min Rds On) | 20V | |
Rds On (Max) @ Id, Vgs | 19mOhm @ 40A, 20V | |
Vgs(th) (Max) @ Id | 2.4V @ 4mA | |
Gate Charge (Qg) (Max) @ Vgs | 215 nC @ 20 V | |
Vgs (Max) | +25V, -10V | |
Input Capacitance (Ciss) (Max) @ Vds | 4500 pF/m @ 700 V | |
FET Feature | - | |
Power Dissipation (Max) | 365W (Tc) | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Chassis Mount | |

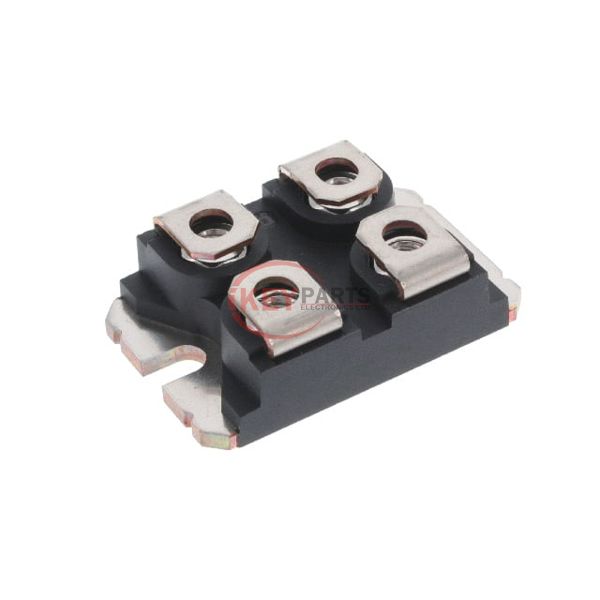

Supplier Device Package | SOT-227 (ISOTOP®) | |
Package / Case | SOT-227-4, miniBLOC |
We can supply MSC100SM70JCU2, use the request quote form to request MSC100SM70JCU2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MSC100SM70JCU2. The price and lead time for MSC100SM70JCU2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MSC100SM70JCU2. We look forward to working with you to establish long-term relations of cooperation.
![]() |
