Series | - | |
Package | Tube | |
Part Status | Active | |
FET Type | N-Channel | |
Technology | SiC (Silicon Carbide Junction Transistor) | |
Drain to Source Voltage (Vdss) | 1.2 kV | |
Current - Continuous Drain (Id) @ 25°C | 55A (Tc) | |
Drive Voltage (Max Rds On, Min Rds On) | 20V | |
Rds On (Max) @ Id, Vgs | 50mOhm @ 40A, 20V | |
Vgs(th) (Max) @ Id | 2.7V @ 1mA | |
Gate Charge (Qg) (Max) @ Vgs | 137 nC @ 20 V | |
Vgs (Max) | +25V, -10V | |
Input Capacitance (Ciss) (Max) @ Vds | 1990 pF/m @ 1000 V | |
FET Feature | - | |
Power Dissipation (Max) | 245W (Tc) | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Chassis Mount | |

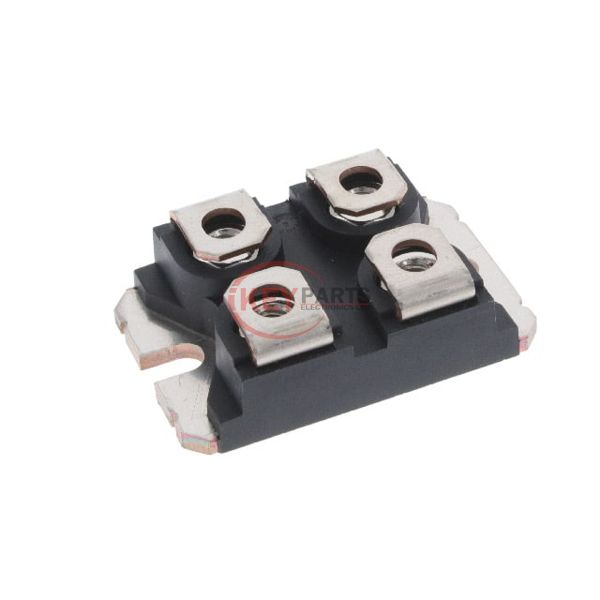

Supplier Device Package | SOT-227 (ISOTOP®) | |
Package / Case | SOT-227-4, miniBLOC |
We can supply MSC40SM120JCU3, use the request quote form to request MSC40SM120JCU3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MSC40SM120JCU3. The price and lead time for MSC40SM120JCU3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MSC40SM120JCU3. We look forward to working with you to establish long-term relations of cooperation.
![]() |
