DMP3105LVT-7

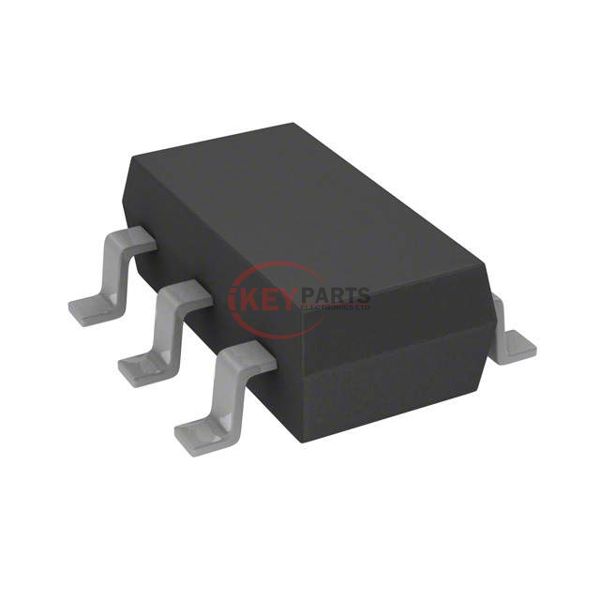

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMP3105LVT-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMP3105LVT-7
Description
MOSFET P-CH 30V 3.1A TSOT23-6
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMP3105LVT-7 PDF
In Stock
803193000
DMP3105LVT-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C3.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
Rds On (Max) @ Id, Vgs75mOhm @ 4.2A, 10V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs19.8 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds839 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.15W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTSOT-26
Package / CaseSOT-23-6 Thin, TSOT-23-6
Request Quote Now
Request Quote Now

We can supply DMP3105LVT-7, use the request quote form to request DMP3105LVT-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMP3105LVT-7. The price and lead time for DMP3105LVT-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMP3105LVT-7. We look forward to working with you to establish long-term relations of cooperation.
