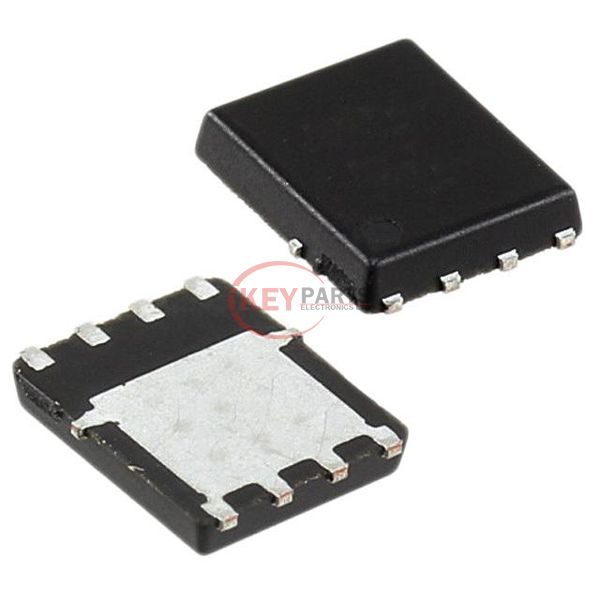

SIRA20DP-T1-RE3

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix SIRA20DP-T1-RE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SIRA20DP-T1-RE3
Description
MOSFET N-CH 25V 81.7A/100A PPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SIRA20DP-T1-RE3 PDF
SIRA20DP-T1-RE3 Tech Specifications
SeriesTrenchFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C81.7A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs0.58mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs200 nC @ 10 V
Vgs (Max)+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds10850 pF @ 10 V
FET Feature-
Power Dissipation (Max)6.25W (Ta), 104W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® SO-8
Package / CasePowerPAK® SO-8
Request Quote Now
Request Quote Now

We can supply SIRA20DP-T1-RE3, use the request quote form to request SIRA20DP-T1-RE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SIRA20DP-T1-RE3. The price and lead time for SIRA20DP-T1-RE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SIRA20DP-T1-RE3. We look forward to working with you to establish long-term relations of cooperation.
