NVMFD6H852NLT1G

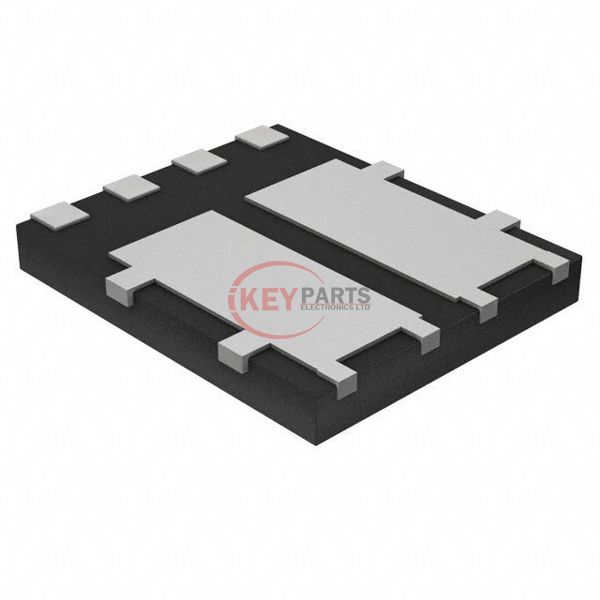

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NVMFD6H852NLT1G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NVMFD6H852NLT1G
Description
MOSFET N-CH 80V 7A/25A 8DFN DL
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NVMFD6H852NLT1G PDF
NVMFD6H852NLT1G Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C7A (Ta), 25A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs25.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2V @ 26µA
Gate Charge (Qg) (Max) @ Vgs10 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds521 pF @ 40 V
FET Feature-
Power Dissipation (Max)3.2W (Ta), 38W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (5x6) Dual Flag (SO8FL-Dual)
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply NVMFD6H852NLT1G, use the request quote form to request NVMFD6H852NLT1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NVMFD6H852NLT1G. The price and lead time for NVMFD6H852NLT1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NVMFD6H852NLT1G. We look forward to working with you to establish long-term relations of cooperation.
