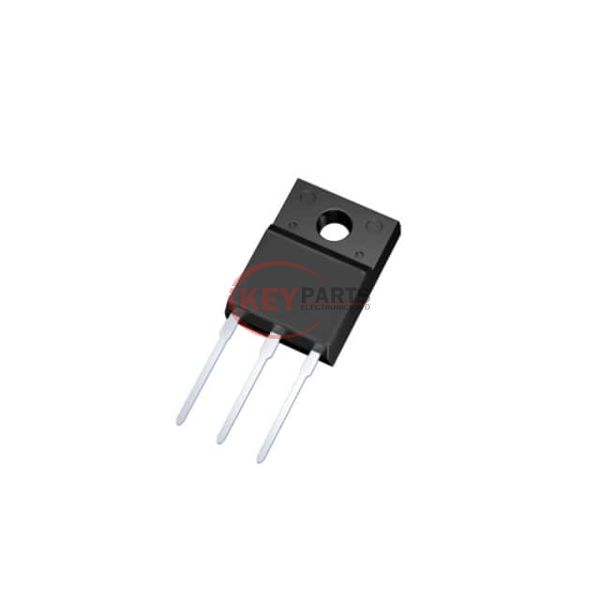

IPAW70R950CEXKSA1

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPAW70R950CEXKSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPAW70R950CEXKSA1
Description
MOSFET N-CH 700V 7.4A TO220-3-31
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPAW70R950CEXKSA1 PDF
IPAW70R950CEXKSA1 Tech Specifications
SeriesCoolMOS™ CE
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)700 V
Current - Continuous Drain (Id) @ 25°C7.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs950mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id3.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs15.3 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds328 pF @ 100 V
FET Feature-
Power Dissipation (Max)68W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO220-3-31 Full Pack
Package / CaseTO-220-3 Full Pack
Request Quote Now
Request Quote Now

We can supply IPAW70R950CEXKSA1, use the request quote form to request IPAW70R950CEXKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPAW70R950CEXKSA1. The price and lead time for IPAW70R950CEXKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPAW70R950CEXKSA1. We look forward to working with you to establish long-term relations of cooperation.
