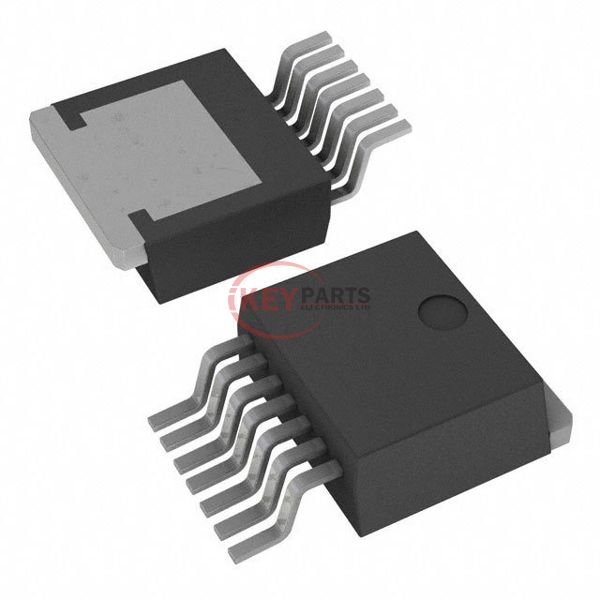

SCTH100N65G2-7AG

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics SCTH100N65G2-7AG

Manufacturer :
STMicroelectronics
Mfr. Part # :
SCTH100N65G2-7AG
Description
SICFET N-CH 650V 95A H2PAK-7
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SCTH100N65G2-7AG PDF
SCTH100N65G2-7AG Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C95A (Tc)
Drive Voltage (Max Rds On, Min Rds On)18V
Rds On (Max) @ Id, Vgs26mOhm @ 50A, 18V
Vgs(th) (Max) @ Id5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs162 nC @ 18 V
Vgs (Max)+22V, -10V
Input Capacitance (Ciss) (Max) @ Vds3315 pF @ 520 V
FET Feature-
Power Dissipation (Max)360W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageH2PAK-7
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Request Quote Now
Request Quote Now

We can supply SCTH100N65G2-7AG, use the request quote form to request SCTH100N65G2-7AG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SCTH100N65G2-7AG. The price and lead time for SCTH100N65G2-7AG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SCTH100N65G2-7AG. We look forward to working with you to establish long-term relations of cooperation.
