TSM1N80CW RPG

Enlarger

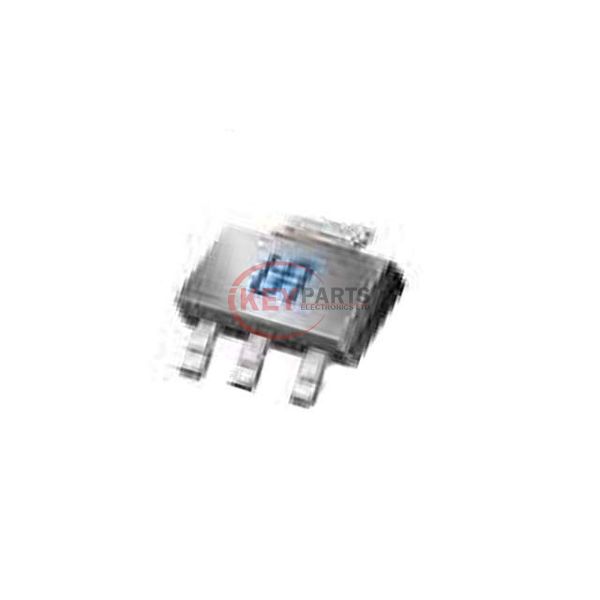

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TSM1N80CW RPG

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TSM1N80CW RPG
Description
MOSFET N-CH 800V 300MA SOT223
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TSM1N80CW RPG PDF
TSM1N80CW RPG Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs21.6Ohm @ 150mA, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds200 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.1W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-223
Package / CaseTO-261-4, TO-261AA
Request Quote Now
Request Quote Now

We can supply TSM1N80CW RPG, use the request quote form to request TSM1N80CW RPG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM1N80CW RPG. The price and lead time for TSM1N80CW RPG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM1N80CW RPG. We look forward to working with you to establish long-term relations of cooperation.
